MICROCHIP  MA240019  Plug-in Module 44-Pin PIC24F MCU Sample, Plug into the Main Processor Socket

MICROCHIP MA240019
Technical Data Sheet (114.06KB) EN Вижте цялата техническа документация

Изображението е само с илюстративна цел. Моля, консултирайте се с описанието.

Преглед на продукта

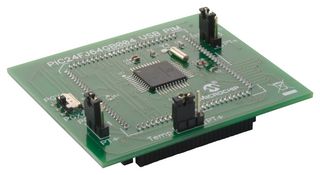

The MA240019 Plug In Module is small circuit board used with the Explorer 16 Development Board (DM240001) to evaluate PIC24FJ64GB004 MCU. The PIC24FJ64GB004 is a 44 pin device with USB On-The-Go (OTG), nanoWatt XLP Technology and Peripheral Pin Select (PPS) features. Due to the flexibility allowed by the PPS feature, the 44 pin device is capable of performing all of the base functions on the 100 pin Explorer 16 board. These plug into the main processor socket of the Development Boards so that different microcontrollers can be used for prototyping, demonstration or development quickly and easily In addition, the PIM is compatible with most of the PICtail Plus daughter boards for the Explorer 16, including the USB PICtail Plus Daughter Board (AC164131).
  • Up to 16MIPS performance
  • JTAG boundary scan and flash memory program support
  • Fail Safe Clock Monitor allows safe shutdown if clock fails
  • 2 UART Modules with LIN and IrDA support, 4 Deep FIFO
  • 2 SPI Modules with 8 Deep FIFO
  • 2 I2C Modules with Master and Slave Modes
  • Peripheral Pin Select for remapping digital peripherals to I/O
  • Charge Time Measurement Unit (CTMU) for capacitive touch interface
  • Full speed USB operation in Device mode
Works with Explorer 16 Development Board (DM240001) sold separately

Информация за продукта

Silicon Manufacturer:
Microchip
Core Architecture:
PIC
Core Sub-Architecture:
PIC24
Silicon Core Number:
PIC24F
Silicon Family Name:
PIC24FJxxGBxxx
For Use With:
PIC24 Explorer 16 Development Board
Kit Contents:
Plug-in Module 44-pin PIC24FJ64GB004 MCU Sample
Product Range:
-
Features:
Plug-In Modules Plug into the Main Processor Socket of the Development Boards
SVHC:
No SVHC (17-Dec-2015)

Намерете подобни продукти  групирани по общи характеристики

Приложения

  • Communications & Networking;
  • Sensing & Instrumentation

Бележки

Works with Explorer 16 Development Board (DM240001) sold separately

Законодателство и околна среда

Страна на произход:
United States

Страна, в която е реализиран последният важен производствен процес

RoHS съвместим:
Да
Тарифа №:
85423990
Тегло (кг):
.112718
