UV Emitter Modules | Farnell България

Намерете огромна гама от UV Emitter Modules в Farnell България. Ние разполагаме с голям избор от UV Emitter Modules, включително нови и най-популярни продукти от най-добрите световни производители включително: Intelligent Led Solutions, Ams Osram Group & Epigap

Изглед

Купувач

Инженер

В наличност(39)

Без доплащане за доставка(79)

Подходящо за нови проекти(79)

нов - 180 дни(1)

Date/Lot Code(5)

Съвместим с RoHS(79)

Производител

UV Emitter Module Type

Product Range

Peak Wavelength

Typical Wattage

Forward Voltage Range

Minimum Radiometric Power

Radiance Angle

Forward Current per Chip

UV Emitter Module Mounting

UV Emitter Module Leads

Operating Temperature Max

Опаковка

Не са приложени филтри

0 Избран(и) филтър(и)

			Цена за		Количество

ILH-XQ01-S380-SC211-WIR200.	3585903 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 380 to 390 nm 135˚ (±67.5°) 3.85 W 200 mm Red & Black Star PCB	Each	1+ € 37,380 5+ € 36,660 10+ € 35,930 50+ € 35,190	Мин: 1 / Множ: 1	4 Chip UV Module	N5050 PowerStar UV Series	380 to 390nm	3.85W @ 350mA	11V to 15V	1W	135° (±67.5°)	700mA	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	70°C
ILH-XR01-S385-SC211-WIR200.	3585905 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 380 to 400 nm 65˚ (±32.5°) 3.85 W 200 mm Red & Black Star PCB	Each	1+ € 63,890 5+ € 55,620 10+ € 54,510 50+ € 53,400	Мин: 1 / Множ: 1	4 Chip UV Module	N5050 PowerStar UV Series	380 to 400nm	3.85W @ 350mA	11V to 15V	1.4W	65° (±32.5°)	700mA	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	70°C
ILS-XN06-S400-SD111.	3764969 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV LED Module 6 Chip 410 nm Strip PCB/M3 Hole 6.3 W 300 mm Red & Black	Each	1+ € 81,410 5+ € 74,810 10+ € 71,910 50+ € 68,220	Мин: 1 / Множ: 1	6 Chip UV Module	TSLC N3535 UV LED 24V Strip Series	410nm	6.3W @ 350mA	24V	2.4W @ 350mA	55° (±27.5°)	800mA	Strip PCB, M3 Holes	300mm Red & Black	70°C

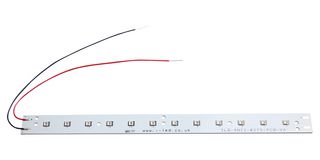

ILS-XP12-S270-0280-SC201-W2.	3594541 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip UVB 270-290 nm 27.3 W 130° (+/- 65°) Strip PCB M3 Holes - Heatsink	Each	1+ € 548,140	Мин: 1 / Множ: 1	12 Chip UV Module	UV N3535 VIOLET Strip Series	270 to 290nm	27.3W	20V to 30V	480mW	± 65° (130°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILR-XO01-S260-LEDIL-SC201.	3594502 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 260 nm to 270 nm 2.28 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ € 45,430 5+ € 41,450 10+ € 40,620 50+ € 40,190	Мин: 1 / Множ: 1	1 Chip UV Module	UV N3535 LEDiL Series	260 to 270nm	2.28W	5V to 7.5V	25mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
ILR-LN01-S270-LEDIL-SC201.	3594508 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 270 nm to 290 nm 0.15 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 24,950 5+ € 21,830 10+ € 18,090 50+ € 16,220 100+ € 14,970	Мин: 1 / Множ: 1	1 Chip UV Module	UV N3535 LEDiL Series	270 to 290nm	0.15W	5V to 8.5V	1mW	± 30° (60°)	30mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	85°C
ILR-XN01-S270-LEDIL-SC201.	3594498 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 270 nm to 290 nm 2.28 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 54,510 5+ € 49,740 10+ € 48,750 50+ € 48,230	Мин: 1 / Множ: 1	1 Chip UV Module	UV N3535 LEDiL Series	270 to 290nm	2.28W	5V to 7.5V	40mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
ILO-XN04-S260-SC201.	3594515 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 260 nm to 270 nm 9.1 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 195,110 5+ € 191,210	Мин: 1 / Множ: 1	4 Chip UV Module	UV N3535 4 SCOB Series	260 to 270nm	9.1W	20V to 30V	100mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILS-XO12-S260-0280-SC201-W2.	3594544 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 to 270 nm 27.3 W 90° (+/- 45°) Rectangular PCB M3 Heatsink Mount	Each	1+ € 2 030,000	Мин: 1 / Множ: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	260 to 270nm	27.3W	20V to 30V	300mW	± 45° (90°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILO-XO09-S300-SC201.	3594534 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 300 nm to 320 nm 20 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ € 448,310	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	300 to 320nm	20W	15V to 22.5V	540mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XO09-S270-SC201.	3594527 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip UVC 270-290 nm 20 W 90° (+/- 45°) Square PCB M3 Holes - Heatsink	Each	1+ € 424,990 5+ € 416,490	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 SCOB Series	270 to 290nm	20W	15V to 22.5V	360mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XN09-S300-SC201.	3594533 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 300 nm to 320 nm 20 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 448,310	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	300 to 320nm	20W	15V to 22.5V	540mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILS-XP12-S260-0280-SC201-W2.	3594545 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 270 to 270 nm 27.3W 130° (+/- 65°) Rectangular PCB M3 Heatsink Mount	Each	1+ € 548,140	Мин: 1 / Множ: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	260 to 270nm	27.3W	20V to 30V	300mW	± 65° (130°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILH-XO01-S410-SC211-WIR200.	3585901 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 410 to 420 nm 125˚ (±62.5°) 1.05 W 200 mm Red & Black Star PCB	Each	1+ € 13,100 5+ € 11,070 10+ € 10,850 50+ € 10,630 100+ € 10,420 Още цени...	Мин: 1 / Множ: 1	1 Chip UV Module	N3535 PowerStar UV Series	410 to 420nm	1.05W @ 350mA	3V to 4V	400mW	125° (±62.5°)	1A	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	70°C
ILS-XN12-S300-0280-SC201-W2.	3594546 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip 320 to 320 nm 27.3 W 60° (+/- 30°) Rectangular PCB M3 Heatsink Mount	Each	1+ € 578,760	Мин: 1 / Множ: 1	12 Chip UV Module	UV N3535 12 VIOLET Strip Series	300 to 320nm	27.3W	20V to 30V	720mW	± 30° (60°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILS-XO12-S270-0280-SC201-W2.	3594540 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 12 Chip UVB 270-290 nm 27.3 W 90° (+/- 45°) Strip PCB M3 Holes - Heatsink	Each	1+ € 548,140	Мин: 1 / Множ: 1	12 Chip UV Module	UV N3535 VIOLET Strip Series	270 to 290nm	27.3W	20V to 30V	480mW	± 45° (90°)	350mA	Strip PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILH-XR01-S270-SC201-WIR200.	3594511 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip UVC 270-290 nm 2.28 W 60° (+/- 30°) Star PCB M3 Holes - Heatsink	Each	1+ € 51,480 5+ € 46,980 10+ € 46,040 50+ € 45,550	Мин: 1 / Множ: 1	1 Chip UV Module	UV N5050 PowerStar Series	270 to 290nm	2.28W	5V to 7.5V	40mW	± 30° (60°)	350mA	Star PCB, M3 Holes - Heatsink Mount	200mm Red & Black	60°C
ILO-XO04-S300-SC201.	3594521 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 300 nm to 320 nm 9.1 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	2+ € 186,790	Мин: 2 / Множ: 2	4 Chip UV Module	UV N3535 4 SCOB Series	300 to 320nm	9.1W	20V to 30V	240mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XP09-S260-SC201.	3594532 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 260 nm to 270 nm 20 W 130° (+/- 65°) Square PCB M3 Heatsink Mount	Each	1+ € 410,830 5+ € 402,610	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	260 to 270nm	20W	15V to 22.5V	225mW	± 65° (130°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILR-XN01-S300-LEDIL-SC201.	3594504 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 300 nm to 320 nm 2.28 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	3+ € 47,400	Мин: 3 / Множ: 3	1 Chip UV Module	UV N3535 LEDiL Series	300 to 320nm	2.28W	5V to 7.5V	60mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
ILO-XN09-S270-SC201.	3594526 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 270 nm to 290 nm 20 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 424,990 5+ € 416,490	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	270 to 290nm	20W	15V to 22.5V	360mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XO09-S260-SC201.	3594530 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 260 nm to 270 nm 20 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ € 410,830 5+ € 402,610	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	260 to 270nm	20W	15V to 22.5V	225mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XN04-S300-SC201.	3594519 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 4 Chip 300 nm to 320 nm 9.1 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 193,370 5+ € 182,930	Мин: 1 / Множ: 1	4 Chip UV Module	UV N3535 4 SCOB Series	300 to 320nm	9.1W	20V to 30V	240mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILO-XN09-S260-SC201.	3594529 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 9 Chip 260 nm to 270 nm 20 W 60° (+/- 30°) Square PCB M3 Heatsink Mount	Each	1+ € 424,990 5+ € 416,490	Мин: 1 / Множ: 1	9 Chip UV Module	UV N3535 9 SCOB Series	260 to 270nm	20W	15V to 22.5V	225mW	± 30° (60°)	350mA	Square PCB, M3 Holes - Heatsink Mount	-	60°C
ILR-XO01-S300-LEDIL-SC201.	3594505 Data Sheet RoHS	INTELLIGENT LED SOLUTIONS UV Emitter Module 1 Chip 300 nm to 320 nm 2.28 W 90° (+/- 45°) Square PCB M3 Heatsink Mount	Each	1+ € 51,290 5+ € 46,780 10+ € 45,840 50+ € 44,910	Мин: 1 / Множ: 1	1 Chip UV Module	UV N3535 LEDiL Series	300 to 320nm	2.28W	5V to 7.5V	60mW	± 45° (90°)	350mA	Square PCB, M3 Holes - Heatsink Mount	Push-In Connector	60°C
