S5.5-BA-EB GG1QO

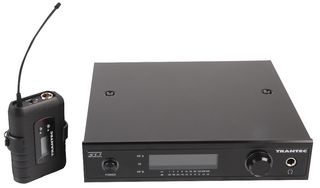

The S5.5-BA-EB GG1QO from Trantec is a 24-Channel wireless system comprising a S5.5-RXA reciever and a S5.5-BTX beltpack transmitter, just a microphone is required.

• <bold>S5.5-RXA reciever</bold>
• Up to 1400 selectable frequencies
• USB based computer control and monitoring for all aspects of performance
• Simple programming of transmitter with built-in Infra-red data link
• Clear and intuitive LCD displays
• EQ and phase reversal
• Power Consumption: 300mA (13V DC)
• Space Diversity (true diversity)
• Audio Output Line: -22dB / Mic: 62dB
• Antenna Phantom Power: 9V DC, 30 mA (max)
• Receiving Sensitivity: 0 bD µV or less(12dB SINAD)
• Squelch Sensitivity: 6-36dB µV variable
• S/N Ratio: Over 110dB (A-weighted)
• Harmonic Distortion: Under 1% (typical)
• Dimensions (WxHxD): 210x46x210mm
• Weight: 1.3kg
• <bold>S5.5-BTX beltpack transmitter</bold>
• Credit card sized beltpack, simlple programming of transmitter with built in infrared data link
• Frequency and power lock facility
• Detachable antenna
