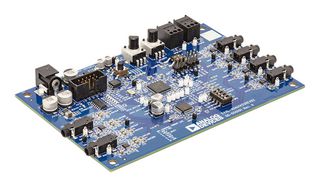

EVAL-ADAU1452REVBZ

EVAL-ADAU1452REVBZ is an ADAU1452 evaluation board. This board evaluates and develops the software for the ADAU1452 SigmaDSP® processors. The EVAL-ADAU1452REVBZ evaluation board provides access to the digital serial audio ports of the ADAU1452 and some of the general-purpose input/outputs (GPIOs). The ADAU1452 core is programmed using the Analog Devices, Inc., SigmaStudio® software which interfaces to the evaluation board via the universal serial bus interface (USBi). The on-board electronically erasable programmable read-only memory (EEPROM) can be programmed for self-boot mode.

• On-board AD1938 codec with 4 analogue inputs and 8 analogue outputs
• Stereo S/PDIF input and output
• self-boot EEPROM memory

Съдържание

EVAL-ADAU1452REVBZ evaluation board, EVAL-ADUSB2EBZ communications adapter (USBi), USB cable with mini-B plug, AC to 6VDC power supply.

Бележки

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
