EVAL-FDA-2CPZ-24

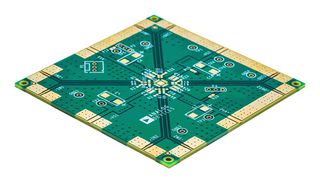

EVAL-FDA-2CPZ-24 is a bare board for dual high speed differential amplifiers evaluation. The EVAL-FDA-2CPZ-24 bare board (that is, there are no components soldered to the evaluation board) that enables users to quickly prototype a variety of differential amplifier circuits, which minimizes risk and reduces time to market. The EVAL-FDA-2CPZ-24 evaluation board supports any of the Analog Devices, Inc., dual high speed differential amplifiers in 4 mm × 4 mm, lead frame chip scale packages (LFCSP).

• Evaluation bare board for 24 lead LFCSP
• Enables quick bread boarding/prototyping
• User defined circuit configuration
• Edge mounted SMA connector provisions
• Easy connection to test equipment and other circuits
• Two independent circuits enhance flexibility
