CIA00-KT-00000

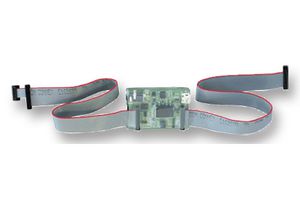

The CIA00-KT-00000 is an Isolation Adapter an optional accessory which provides electrical isolation between the target system and the ULINKpro debug and trace unit. Electrical isolation is essential when working with systems that may generate high-voltage spikes such as motor control or where there is no common ground plane. The isolation adapter uses digital isolation technology which enables it to support high-speed debug and trace as well as a wide target voltage range.

• Provides digital isolation up to 1,000V (1KV)
• High-speed debug - JTAG (15MHz) and SW (20MHz)
• Full-speed data trace capture (SWV)
• Supports instruction trace capture up to 150Mbps using 2 or 4-pin ETM
• Enables timing synchronization with optional power measurement probes
• Wide I/O Voltage range 1.8 - 5.5V
• External power (via USB connector) minimizes power taken from target

Приложения

Test & Measurement, Industrial

Бележки

The Isolation Adapter is not included as standard with ULINKpro. It must be purchased separately. The Isolation Adapter is not suitable to use with ULINK-ME, ULINK2 or the original ULINK adapter.
