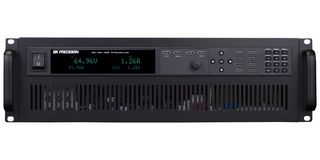

BK8610B

8600B series programmable DC electronic load provide the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds and high 16bit measurement resolution, this standalone DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers and photovoltaic arrays. It provides a built-in battery test mode to measure the ampere-hour (Ah) characteristic of a battery and a unique CR-LED mode to simulate the loading behaviour of a typical LED.

• 0 to 120V operating voltage, 0 to 120A rated current and 750W power
• CC/CV/CR/CW operating modes and adjustable slew rate in CC mode
• Store and recall up to 100 setups
• Flexible triggering options via front panel, external input, timer or bus
• Built-in battery test function with voltage level, capacity level and timer stop conditions
• Test modes to validate the OCP/OPP protection functions of a power supply
• CR-LED mode to simulate the loading behaviour of typical LEDs
• Remote sense, analogue current control and monitoring
• Thermostatically controlled fan
• Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control

Съдържание

DC electronic load, User manual, Power cord, Certificate of calibration.
