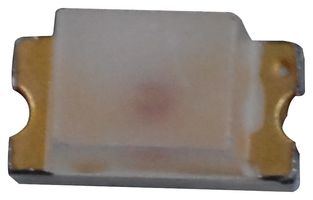

HSMG-C190

The HSMG-C190 is a surface mount chip LED designed in an industry standard package for ease of handling and use. It has the industry standard 1.6 x 0.8mm footprint with varying profile to suit designer needs. This family with its thin profile and wide viewing angle makes this LED exceptional for backlighting applications. The small size and wide viewing angle makes this LED prime choice for backlighting applications and front panel illumination especially where space is a premium.

• Green colour chip LED
• Diffused optics
• 2.2V typical forward voltage, 20mA DC forward current
• 15mcd luminous intensity at If = 20mA
• 570nm peak wavelength, 572nm dominant wavelength, 170° viewing angle
• Operating temperature range from -40°C to 85°C

Приложения

LED Lighting, Industrial

Бележки

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
