28502

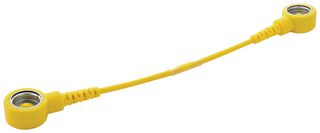

The 28502 is a Connecting Cord with 115mm length wire. It has polyurethane insulation and Ø2.5mm 7 tinsel wires conductor. The body housing shall contain a female socket snap without resistor joined in series to the conductor with another 10mm female socket snap without resistor. The ground end of the cord is moulded with single nylon material (strain relief/body housing). The cord conductor shall have an end to end resistance not greater than 50Ω. The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire and in no case shall it be less than 5lbs. Moulded ends and chips made of low charging nylon material.

• Exceeds 20000 cycles of bending life test without any physical damage on the strain relief
• 1 to 5lbs Pull away force is required to disconnect the snap in a normal disconnect direction
• Corrosion-resistant metal parts
