6069-410-064

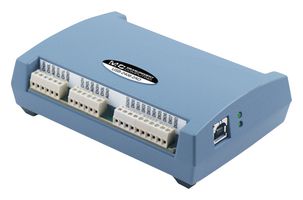

USB-2408-2AO is a high precision thermocouple and voltage measurement USB DAQ device. The USB-2408-2AO data acquisition device has 24-bit resolution for highly accurate measurements. Features include thermocouple or voltage configuration per channel along with digital and counter functions. Up to two analogue outputs are available. The USB-2408-2AO is powered by the +5 volt USB supply from your computer; no external power is required. A USB cable is shipped with the device.

• 16 single-ended (SE) or eight differential (DIFF) analogue input channels
• 24-bit resolution
• 1kS/s sample rate
• Two 16-bit analogue output channels
• Eight digital I/O channels
• Two counter channels (32-bit) that count TTL pulses
• 500VDC input isolation between field wiring and the USB interface
• Screw terminals for field wiring connections

Съдържание

USB-2408-2AO, USB cable, Printed insert: DAQami quick start, MCC packaging assembly/foam, etc.

Бележки

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
