01DS364A00GT

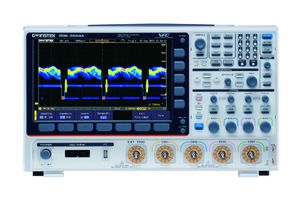

GDS-3654A is a 650MHz, 4-channel, digital storage oscilloscope. It features the memory length of each channel up to 200Mpts; the sampling rate of 5GSa/s half channels and 2.5GSa/s on all channels. Its display is 10.2” TFT LCD and it provides the colour display mode. The output RGB three primary colours are each 8 bits, which allow users to clearly analyse the strength distribution of the signal. Applications include engineering verification and testing, switching mode power supply measurement and product development and debugging.

• 200,000wfm/s of waveform update rate
• 490,000 segments of segmented memory and the waveform search function
• Zoom window and play/pause rapidly navigate the waveforms
• 38 sets of automatic measurement offer various measurement selections
• High resolution acquisition ode
• I2C/SPI/UART/CAN/LIN serial bus trigger 2 and decoding function
• Dual channel spectrum analyser (DC~2.5GHz) with spectrogram
• Dual channel 25MHz arbitrary waveform generator
• USB/LAN/RS-232 standard interfaces
• Dimension is 420mm(W) X 253mm(H) X 113.8mm(D)

Съдържание

Digital storage oscilloscope, User manual CD x 1, Power cord x 1, GTP-501R:500MHz 10:1 passive probe.
