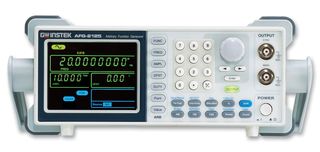

AFG-2005

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexible environment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields.

• 0.1Hz to 5 MHz with in 0.1Hz Resolution
• Sine, Square, Triangular, Noise and Arbitrary Waveform
• 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
• 1% ~ 99% adjustable duty cycle for Square Waveform
• Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
• Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5" LCD Screen Simultaneously
• AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
• USB Device Interface for Remote Control and Waveform Editing
• PC Arbitrary Waveform Editing Software

Приложения

Sensing & Instrumentation, Signal Processing, Test & Measurement

Съдържание

User manual CD x 1, Quick Start Guide x 1, Power Cord x 1 & GTL-110 test lead x 1.

Бележки

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
