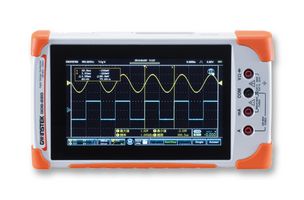

GDS-210

2-Channel digital storage oscilloscope with 100MHz bandwidth. This compact, handheld device can be positioned in portrait and landscape display. Recharging battery design makes it easy to operate in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection, repair and maintenance on field assignments. Trend plot in a long period of time can also be drawn allowing effectively monitoring standard electric parameters while measuring basic circuit signals. Built-in 30000 waveform records replay function which monitors circuit in a long period of time and records which can be replayed repeatedly. Built-in engineering calculator, SMD resistance coding, colour coding info and attenuator calculation application software.

• 7" Portable full touch panel capacitive LCD display with 480x800 pixels resolution
• Built-in Li-polymer 6100mAh, 7.4V battery
• Use as a USB storage device with 120MB internal flash disk
• Input impedance of 1Mohm ±2% (6.5pf approx.)
• Maximum input of CAT II 300VRMS
• Built-in 5000 counts DMM, GO/NOGO template editing
• Rise time of less than 3.5ns
• Briefing material compilation, image storage and preview function
• Real time sample rate of 1GSa/s, memory depth of 1Mpoints per channel
• Operating temperature range from -50°C to +1000°C
• Dimensions (WxHxD): 240x136x60mm

Приложения

Test & Measurement

Съдържание

GDS-210 oscilloscope, Quick start auide x 1, User manual CD x 1, Power cord x 1, GSC-010 soft carrying case, GSC-011 soft carrying bag, GAP-001 AC to DC adapter, GWS-001 wrist strap, GTL-207 multimeter test lead x 2, GTP-150B-2 150MHz probe.

Бележки

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
