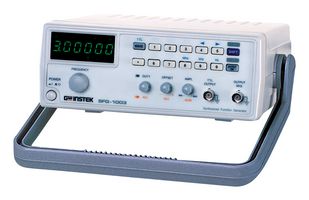

SFG-1003

The SFG-1003 is a 3MHz DDS Function Generator gives a high value solution to the users who need a signal source for accurate but simple measurement applications. The SFG-1000 series, an economic function generator with high accuracy and high stability output, is designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA. The 3MHz frequency range and the output waveform selection of sine, square, triangle and TTL available in the SFG-1000 series adequately provide the fundamental functions to ensure high confidence in test results.

• DDS technique and FPGA chip design
• Supports 0.1Hz to 3MHz frequency range
• High frequency accuracy (±20ppm)
• High frequency stability (±20ppm)
• 100mHz Maximum frequency resolution
• Low distortion sine wave (-55dBc, 0.1Hz to 200kHz)
• Ambient temperature range from 0°C to 40°C
• Power source AC is 100V/120V/220V/240V±10%, 50/60Hz
• Dimension is 251mm(W) x 91mm(H) x 291mm(D), approximately 2.1Kg weight

Приложения

Test & Measurement

Съдържание

SFG-1003 DDS function generator, User manual x1, Power cord x1, Test lead GTL-101 x1.

Бележки

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
