02 02 160 2201

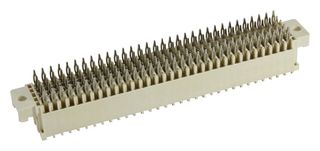

The 02 02 160 2201 is a Harting har-bus® 64 160-position Female DIN 41612 Backplane Signal Connector, with flange, straight orientation, copper alloy contacts with gold over nickel plated and press in termination and length 4.5/5.0mm. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.

• PL 2 according to IEC 61076-4-113 250 mating cycles
• UL94V-0 Flammability rating

Приложения

Industrial
