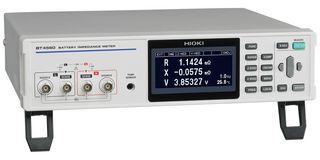

BT4560-50

BT4560-50 is a battery impedance meter. It can make measurements quickly and easily in applications ranging from R and D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience.

• EIS measurement frequency: 0.01Hz to 1.05KHz
• Simultaneous measurement of impedance, voltage and temperature
• Data compatibility with third-party equivalent circuit analysis software
• For production lines: LAN interface and advanced multi-channel solutions
• Measure very low impedances of 1mohm or less
• Dedicated probes for four-terminal pair measurement reduce the magnetic flux generated
• Temperature range from 10°C to 60°C, measurement time is 2.3s
• 100V to 240VAC rated supply voltage, 50Hz/60Hz rated supply frequency
• Rated power is 80VA maximum
• Dimension is 330mm W x 80mm H x 293mm D

Съдържание

Battery impedance meter, Power cord × 1, Instruction manual × 1, Zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1.
