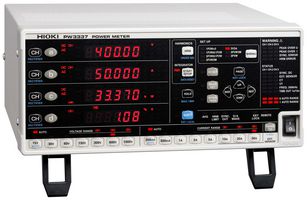

PW3337

PW3337 is a 3-channel AC/DC power meter for single-phase to 3P4W equipment such as motors, Inverters, Power Conditioners, and Power Supplies measure power on the full range of electrical equipment, from single-phase devices such as battery-driven devices and household electronics to industrial use and three-phase electrical equipment over 3 input channels. The power meters provide coverage from DC to inverter frequencies with support for voltages up to 1000V and direct-input currents of up to 65A, and can also measure currents of up to 5000A using an optional current sensor.

• Compatible with the SPECpower® benchmark for server power consumption
• Wide frequency bandwidth of 0.1Hz to 100KHz or DC
• Synchronize up to 8 units for multi-unit measurement
• High-precision ±0.1% basic accuracy
• Harmonic measurement up to the 50th order according to IEC 61000-4-7
• Measure DC, and single-phase 2-wire to 3-phase 4-wire with 3-channel input
• High-accuracy measurement, even with low power factor for no-load testing of transformers and motors
• Create a 6-channel power meter by synchronizing two PW3337 units and using the free PC application
• Built-in LAN, RS-232C interface
• Dimension is 305mm W x 132mm H x 256mm D, power supply range from 100V to 240VAC

Съдържание

Power meter, Instruction manual x 1, Measurement guide x 1, Power cord x 1.
