FH26W-25S-0.3SHW(97)

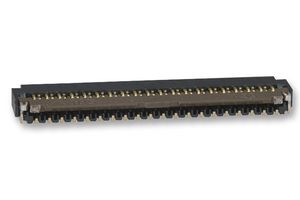

The FH26W-25S-0.3SHW(97) from Hirose(HRS) is a low profile 0.3mm pitch FPC connector in SMT horizontal staggered mounting. The ultra-thin design, 1mm height, 3.2mm width all add up to a compact, space saving form factor. The flexible printed circuit connector 30% reduction in PCB footprint and reduced approximately 40% reduction in weight as compared with Hirose Electric's 0.3mm pitch FH23 series 51 position connectors. The one touch rotating ZIF mechanism is easier to operate and works with a light force and a clear tactile click is delivered upon the successful completion of the mating process. The leads are double sided and have a 0.6mm mounting lead pitch to simplify mounting.

• Number of contacts is 25
• LCP insulator
• Phosphor bronze with gold plated contacts, phosphor bronze with pure tin reflow plated metal fitting
• Current rating is 0.2A, voltage rating is 30VAC
• Thickness is 0.2mm
• Operating temperature range from -55°C to +85°C
• Minimum insulation resistance is 50Mohm at 100VDC
• Maximum contact resistance is 100mohm at 1mA
• Easy PCB mounting, fully moulded structure aids PCB layout and easy FPC insertion
• FPC accepts standard 0.2mm thick FPC
