BTT3018EJDEMOBOARDTOBO1

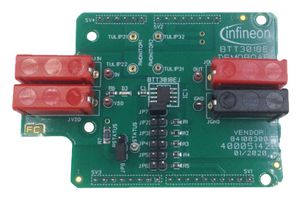

BTT3018EJDEMOBOARDTOBO1 is a demo board that comes with 1 one channel low-side switch of BTT3018EJ, which is the first HITFET™+ 24V device. This is a flexible evaluation-board dedicated to drive all kinds of loads. The demo board can be controlled either with the general logic I/O-ports of a microcontroller or with a PWM. It includes a typical schematic to control the BTT3018EJ. This shield offers a quick evaluation of the product, the “Status” latch functionality, the “SRP” functionality, and all protections, e.g. “Over temperature shut down”. Suitable for 24V low-side and high-side loads, all types of resistive, inductive and capacitive loads and suitable for driving applications with high PWM (up to 20KHz).

• Slew rate pin control for PWM
• Diagnosis via STATUS pin and dynamic temperature protection with latch shutdown
• Power losses/EMI optimization with SRP pin
• Reset of latch via status pin (configuration of IN to STATUS also possible)
• High short circuit robustness
• Demo board is compatible with Arduino UNO shield and Infineon XMC1100
• Demo board is able to provide continuous current load (36V- 20A) between V-OUT and GND
• A green LED will turn on when logic supply voltage is connected and on
• Output voltage, input logic, status and SRP can be measured externally with test points
• Output voltage, input logic, status can be monitored with the Arduino Interface

Съдържание

Demoboard-BTT3018EJ-User-Manual-Vx.x, demoboard-BTT3018EJ.exe, demoboard-BTT3018EJ.ino.
