S2GOHALLTLE49643MTOBO1

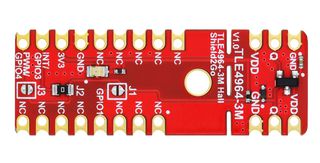

S2GOHALLTLE49643MTOBO1 is an evaluation board to evaluate TLE4964-3M integrated Hall effect switch designed specifically for highly accurate applications with superior supply voltage capability, operating temperature range and temperature stability of the magnetic thresholds. It offers a unique customer and evaluation experience – the boards are equipped with one TLE4964-3M magnetic hall sensor and come with a ready to use Arduino library. Customers can now develop their own system solutions by combining Shield2Go boards together with Infineon My IoT adapters. Typical applications include position detection applications.

• 3V to 32V operating supply voltage
• Operation from unregulated power supply
• Reverse polarity protection (-18V)
• Overvoltage capability up to 42V without external resistor
• Output overcurrent & overtemperature protection
• Active error compensation
• High stability of magnetic thresholds
• Low jitter (typ. 0.35μs)
• High ESD performance
