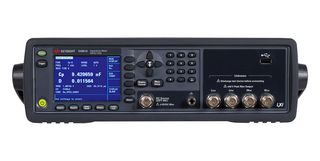

E4981A / E4981A-001

E4981A+E4981A-001 is a capacitance meter with option 001. E4981A capacitance meter offers a high-speed with reliable measurements for ceramic capacitor testing in the production lines. The E4981A realizes the measurement capabilities of capacitance from small to large values with accurate measurements. The E4981A capacitance meter contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.

• Includes option 001 for 120Hz, 1KHz, 1MHz test frequencies
• 0.07% basic accuracy
• High-speed measurements to 2.3ms at 1MHz
• Measurements 7 parameters
• 9 bin sorting
• 256 multi-channel correction
• Compatible SCPI command and handler/scanner interfaces with the 4268A and 4288A
• Front-panel USB memory interface
• GPIB, USB, LAN (LXI-C)

Бележки

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
