SGD 70-A

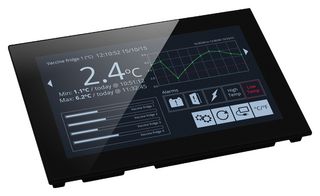

SGD 70-A is a PanelPilot 7” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off-the-shelf display features a wealth of hardware interfaces, including four 16bit bipolar analogue inputs (to a maximum of ±40V DC), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on board to measure temperature. Users program the display using the free PanelPilotACE Design Studio software which allows the creation of anything from simple meters and dials, through to advanced user interfaces with control elements.

• Capacitive touchscreen, 1024 x 600px resolution
• NXP iMX6XSolo (ARM Cortex A9 at 800MHz and Cortex M4 at 227MHz) processor
• Digital I/O: 8 x DIO, 2 x open-collector alarm outputs, 4 x 8 bit PWM outputs
• 2Gbit DDR3 SDRAM and 2GB SD card
• Operating temperature range from 0 to 40°C (32 to 104°F)
• Outside dimension is 186 x 122 x 21mm
