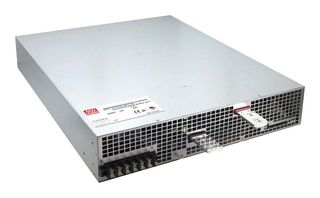

RST-10000-36

RST-10000 series is a single output enclosed type AC/DC power supply. It is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C. Moreover, RST-10000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power. Application includes factory control or automation apparatus, test and measurement instrument, laser related machine, burn-in facility, RF application, electric scooter or vehicle charger station, constant current source. It complies with UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004.

• Built-in active PFC function
• Input voltage range from 3ψ 3-wire/196 to 305VAC or 3ψ 4-wire/340 to 530VAC, DC voltage of 36VDC
• Efficiency is 89.5%, rated power of 9936W, rated current of 276A
• Forced air cooling by built-in DC fan
• Output voltage and constant current level programmable
• Active current sharing up to 20000W (1+1)
• Built-in remote ON-OFF control / remote sense/ auxiliary power / alarm signal
• Short circuit / overload / over voltage /over temperature / fan fail protections
• 5 years warranty
• Dimension is 540mm x 424mm x 83.5mm (L x W x H), working temperature range from -30 to 70°C
