92315-2610
Ribbon Cable, PF50 Receptacle to PF50 Receptacle, 26 Ways, 3.9 ", 100 mm, 1.27 mm
Имате нужда от повече?
| Количество | |
|---|---|
| 1+ | € 6,340 |
| 10+ | € 4,070 |
| 100+ | € 3,840 |
| 250+ | € 3,830 |
| 500+ | € 3,820 |
| 1000+ | € 3,740 |
Информация за продукта
Преглед на продукта

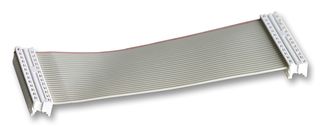

The 92315-2610 is a 100mm 26-way natural Picoflex® Ribbon Cable Assembly with a female PF-50 IDT connector on each end. The 92315 series cable is made of PVC. The connector contacts are made of phosphor bronze. A strong one-piece upper housing provides excellent cable retention and is ideal for small circuit size applications. The high-reliability contact features a four-point interface with the cable and two points of contact between the header and receptacle. Picoflex also offers excellent polarization to both the PCB and between the female connector and header. It mates with 90325, 90800, 90779, 90715 and 90814 headers.
- 250V Maximum voltage
- 1.2A Maximum current per contact
Приложения
Automotive, Consumer Electronics, Communications & Networking, Industrial, Medical
Технически характеристики
PF50 Receptacle
26Ways
3.9"
1.27mm
-
No SVHC (21-Jan-2025)
PF50 Receptacle to PF50 Receptacle
PF50 Receptacle
100mm
Picoflex 92315 Series
0.635mm
Технически документи (4)
Сродни продукти
2 Намерени продукта
Законодателство и околна среда
Страна, в която е реализиран последният важен производствен процесСтрана на произход:Poland
Страна, в която е реализиран последният важен производствен процес
RoHS
RoHS
Сертификат за съответствие на продукта
