MP-11-110/-/E121B14H221

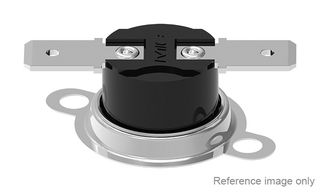

MP-11-110/-/E121B14H221 is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 110°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 250V at 10A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.

• Manual reset thermostat
• Heat resistant is 170°C
• Resistance between terminals is below 50mohm at DC5V/0.25A
• Insulated resistance is above 100Mohm with DC500V between terminals and cap
• Dielectric strength is 1500VAC at 1minute between terminals and cap
• Set temperature range from 15°C to 250°C
• Certified as per GB14536. 1-2008, GB14536. 10-2008, GB/T22687-2008, EN60730-1, EN60730-2-9 standards
• AgNi/Cu (T2) stationary/movable contact, brass stationary arm, PF case/top cover, aluminium cap
• Bimetal disc, alloy copper movable arm, steel (nickel plated) reset pin, ceramic actuator pin
• Reset 110°C ±4°C temperature

Приложения

Temperature Controllers, Industrial, Automation & Process Control, HVAC

Съдържание

x1 Thermostat switch.

Бележки

Secure flange mounting to surfaces.
