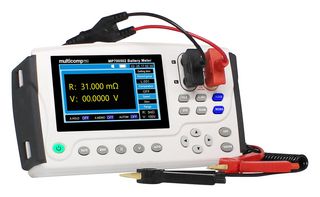

MP700502

The MP700502 from Multicomp Pro is a handheld battery tester, featuring a voltage range of 10µV to 1000V, ESR and DCV measurement types, and a 4.3" TFT LCD display.

• Voltage range reading of 0.00001V to 1000V
• Voltage basic accuracy of ±0.02%
• Resistance range reading of 0.0001mohm to 30.000ohm
• Resistance basic accuracy of ±0.5%
• Signal source - AC 1kHz, open circuit voltage <lt/>5V, test current <lt/>150mA
• 5 level range - 3mohm, 30mohm, 300mohm, 3ohm, 30ohm - Auto and manual test mode
• 20 meas/sec, 3 meas/sec sampling rates
• Temperature range -10°C to 60°C (accuracy ±1°C)
• 200 sets storage data
• Stores up to 2400 sets of test data
• Internal/auto trigger
• USB & export triggers (port execute the hold function)
• Power supply - 12V/1700mAh lithium battery (or) 8x AA (LR6) alkaline batteries
• Maximum rated power of 4VA
• Dimension is 208mm x 120mm x 52.5mm without sleeve
• Device weight is 810g

Съдържание

Handheld battery tester, Test clip, Zero-adjustment board, Temperature sensor, USB mini cable, charger & belt.

Бележки

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
