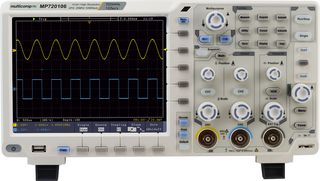

MP720106

The MP720106 from Multicomp Pro is a 14-bit high vertical resolution, 200MHz, 2-channel digital storage oscilloscope with decoding kit (RS232, SPI, I2C, CAN trigger/decode), touch-screen functionality and built-in Wi-Fi, function generator and digital multimeter with data-logging function.

• Ultra-thin design, less space accommodation
• Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX
• 8" 800x600 high resolution LCD touch-screen for a more user-friendly operating experience
• 14-bit high resolution ADC, restoring the waveform detail fully
• Wi-Fi module supported
• multimeter with data-logging function
• Functions as dual-channel 25MHz arbitrary waveform generator
• 40M record length
• Max 75,000 wfms/s waveform refresh rate
• Low background noise, vertical sensitivity 1mV/div - 10V/div
• Multi-trigger and bus decoding function
• VGA port - better solution for video expansion and teaching demonstrations
• SCPI and LabVIEW supported
• 1ns/div – 1000 horizontal scale (s/div), step by 1-2-5
• DC, AC and GND input coupling
• Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
• Auto, normal and single trigger modes
• Dimensions (W x H x D) - 340 x 177 x 90mm
• Device Weight – 2.6kg

Съдържание

Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM

Бележки

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
