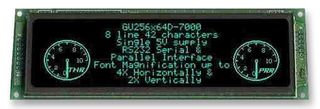

GU256X64D-7000

The GU256X64D-7000 is a Dot Graphic VFD Module include the vacuum fluorescent display glass, VF drivers and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8-bit parallel interface is 5V TTL/CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 115200 with none parity. The module is ready to receive ASCII characters without initialization commands. The 7000/7003 versions have firmware offering 4 user definable window areas and support multi-size international fonts. Scroll and flash with graphic upload functions.

• 256 x 64 Dot graphic
• High brightness blue green display
• -20 to 70°C Operating temperature range
• 11 multi sized fonts
• High speed 8-bit parallel interface
• Asynchronous RS232 serial interface
• Economic low profile modules
• Scroll + image + fill commands
