FPC-COM1

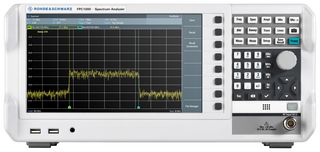

FPC-COM1 is a bundle of FPC1000 spectrum analyser with other pre-installed options(preamplifier, modulation analysis, receiver mode, advanced measurement). FPC1000 features 10.1", WXGA (1366 × 768 pixel) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via smart wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless Wi-Fi connectivity. R&S InstrumentView for Windows as well as the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere.

• 100% software upgradeable
• Provides low noise floor of -150dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• R&S FPC1000 is capable of measuring high power signals of up to +30dBm (1W)
• 6 markers shown vividly in different colours
• Two USB2.0 ports for storage media & connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Dimension is 396mm x 185mm x 156mm, weight is 3Kg
• Complete package up to 3GHz to customize your EMI pre-compliance or general-purposes applications

Съдържание

FPC1000 spectrum analyser, Preamplifier, Modulation analysis, Receiver mode, Advanced measurements, Power cable, USB cable for connection to PC.

Бележки

A discount of up to 50% has been applied to this SKU, and the offer is valid until stock lasts.
