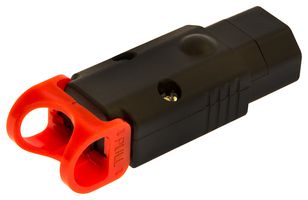

IL13+ REWIREABLE IEC LOCK

IL13+ REWIREABLE IEC LOCK is a rewireable connector with locking system IL. The locking system has a tensile force of typical 300N. It is recommended to use it with flange mount filters. Schaffner power connector with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet. No exchange or modification of the IEC inlet or IEC inlet filter system is needed. Easy retrofit for all electronic equipment's and devices. Typical application includes data centres, industrial equipment, medical devices, in-vitro diagnostic devices, broadcasting stations, mobile applications.

• Power cord connector with locking system for IEC inlets
• Suitable for use with any C14 IEC inlet
• Fits the complete Schaffner IEC inlet filter program with C14 IEC inlet
• 1 to 10A (ENEC), 1 to 15A (UL, CSA) approvals by rated current
• High potential test voltage is P–<gt/> PE 2000VAC (1min 50Hz), P –<gt/> N 2000VAC (1min 50Hz)
• Maximum continuous operating voltage is 250VAC, 50/60Hz
• IP20 according IEC 60529 protection category
• Operation temperature range from -25°C to +70°C
