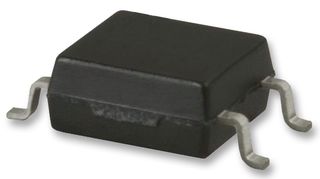

LH1546ADF
MOSFET Relay, 350 V, 120 mA, 35 ohm, SPST-NO
Имате нужда от повече?
| Количество | |
|---|---|
| 1+ | € 1,900 |
| 10+ | € 1,660 |
| 25+ | € 1,510 |
| 50+ | € 1,360 |
| 100+ | € 1,190 |
Информация за продукта
Преглед на продукта
The LH1546ADF is a Solid State Relay with SPST-NO contact and surface-mount terminals. This 1-form-A relay is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated BCDMOS technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. It employs current-limiting circuitry which meets lightning surge testing as per ANSI/TIA-968-B and other regulatory voltage surge requirements when overvoltage protection is provided.
- Current limit protection
- High surge capability
- Clean bounce-free switching
- Low power consumption
- High reliability monolithic detector
- 550mW Power dissipation
- 3ms Turn-on/off maximum time
- -40 to 85°C Ambient temperature range
Приложения
Communications & Networking, Sensing & Instrumentation, Automation & Process Control
Технически характеристики
SPST-NO
AC / DC
120mA
Surface Mount
Gull Wing
5.3kV
500nA
No SVHC (07-Nov-2024)
SPST-NO (1 Form A)
350V
SMD-4
10mA
35ohm
1pF
-
Технически документи (2)
Алтернативи за LH1546ADF
3 Намерени продукта
Законодателство и околна среда
Страна, в която е реализиран последният важен производствен процесСтрана на произход:Malaysia
Страна, в която е реализиран последният важен производствен процес
RoHS
RoHS
Сертификат за съответствие на продукта
