PR03000207502JAC00
Through Hole Resistor, 75 kohm, PR03 Series, 3 W, ± 5%, Axial Leaded, 750 V
Имате нужда от повече?
| Количество | |
|---|---|
| 1+ | € 0,582 |
| 10+ | € 0,373 |
| 50+ | € 0,282 |
| 100+ | € 0,253 |
| 200+ | € 0,213 |
| 500+ | € 0,173 |
Информация за продукта
Преглед на продукта

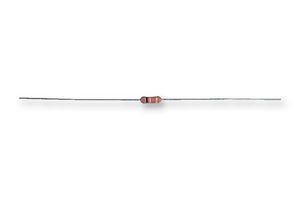

The PR03000207502JAC00 is a 75kΩ leaded metal film Power Resistor with pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes. A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistor is coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
- Defined interruption behaviour
- Lead-free solder contacts
Технически характеристики
75kohm
3W
Axial Leaded
Metal Film
High Power
19.5mm
-55°C
-
PR03 Series
± 5%
750V
± 250ppm/°C
5.2mm
-
155°C
No SVHC (21-Jan-2025)
Технически документи (1)
Законодателство и околна среда
Страна, в която е реализиран последният важен производствен процесСтрана на произход:India
Страна, в която е реализиран последният важен производствен процес
RoHS
RoHS
Сертификат за съответствие на продукта
