8025610000

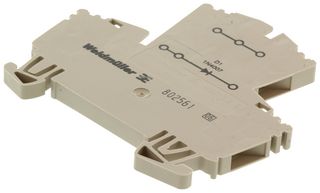

The 8025610000 is a Component Terminal Block with screw connection, diode for screwable cross section and 2.5mm² wire cross section area. M2.5 clamping screw and 10mm stripping length. Dark beige colour, TS 35 rail mount and snap-on mounting. The WDK 2.5 1D terminal block accepts 26AWG minimum to 12AWG maximum wire size. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials have been tested to current environment guidelines. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller's W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.

• Simple operation - Can be clipped to or removed from the terminal rail in either direction
• Thermally stable up to 120°C
• Phosphorous- or halogen-free
• Maintenance-free contacts
• Highest contact force of all connection systems
• Electric shock protection with connected conductors, even when cross-connected
• Wemid insulator
• UL94V-0 Flammability rating

Приложения

Industrial
