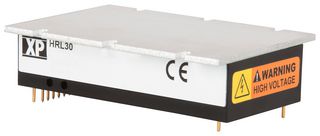

HRL3024S6K0P
High Voltage DC/DC Converter, Regulated, Positive Output, Programmable, 30 W, 5 mA, Through Hole
Свържете се с мен, когато продуктът е наличен отново.
| Количество | |
|---|---|
| 1+ | € 1 076,000 |
| 5+ | € 1 060,000 |
| 10+ | € 1 044,000 |
| 50+ | € 879,710 |
| 100+ | € 851,630 |
Информация за продукта
Преглед на продукта
The HRL30 series, is a miniature 30W regulated high voltage DC-DC converter product line providing voltages up to 6kV. HRL30 offers both voltage and current mode controls and monitors. This product deploys a proprietary design which delivers accurate high voltage at higher efficiency with low EMI. This product has constant voltage and constant current operation with automatic crossover to current limiting mode preventing the delivered current from exceeding the programmed current level. It has digital compatible voltage and current monitors and controls to make it a convenient product for a wide range of high voltage applications.
- 24VDC Input (22 to 30V)
- Output Voltage & Current Regulated
- 0 to 100% Programmable Output & Current
- Voltage & Current Monitor Outputs
- Operating Temperature: -40°C to +70°C
- Short Circuit, Arc, and Overload Protections
- On-board +5V Reference
- Efficiency <gt/>80%
- Low Ripple <lt/>0.05%
- Premier Thermal Performance
- UL 60950 and 62368 Approved
Технически характеристики
Regulated
Programmable
5mA
0V
22V
HRL30 Series
Positive Output
30W
Through Hole
6kV
30V
No SVHC (15-Jan-2018)
Технически документи (3)
Законодателство и околна среда
Страна, в която е реализиран последният важен производствен процесСтрана на произход:United States
Страна, в която е реализиран последният важен производствен процес
RoHS
RoHS
Сертификат за съответствие на продукта
