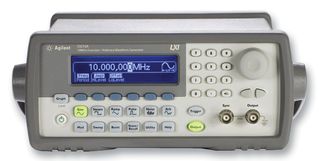

33210A

The Keysight Technologies 33210A Function/Arbitrary Waveform Generator is the latest addition to the 332XX family. Waveforms are generated using direct digital synthesis (DDS) technology which creates stable, accurate low distortion sine waves as well as square waves with fast rise and fall times up to 10 MHz and linear ramp waves up to 100 kHz. For user defined waveforms, option 002 provides 14-bit, 50 MSa/s 8K point Arbitrary Waveform Generation.

• 10 MHz Sine and Square waveforms
• Pulse, Ramp, Triangle, Noise, and DC waveforms
• Optional 14-bit, 50 MSa/s, 8K point Arbitrary Waveform Generator
• AM, FM, and PWM modulation types
• Linear & logarithmic sweeps and burst operation
• 10 mVpp to 10 Vpp amplitude range
• Graph mode for visual verification of signal settings
• Connect via USB, GPIB and LAN
• Fully compliant to LXI Class C specification
• Power Rating: 100-240 V @ 50/60 Hz, 100-120 V @ 400 Hz

Приложения

Sensing & Instrumentation, Signal Processing, Test & Measurement

Съдържание

BenchVue software license (BV0002B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. Keysight 33210A, Operating manual, service manual, quick reference guide, IntuiLink waveform editor software, test data, USB cable, and power cord

Бележки

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
